Specifications
Specifications

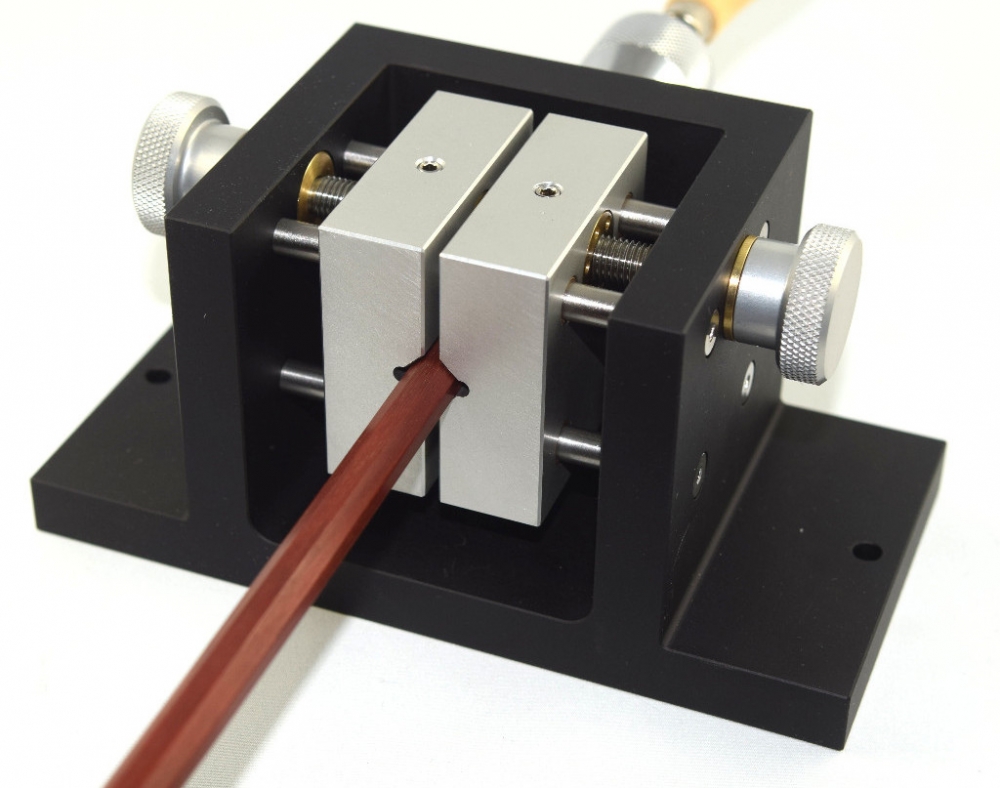

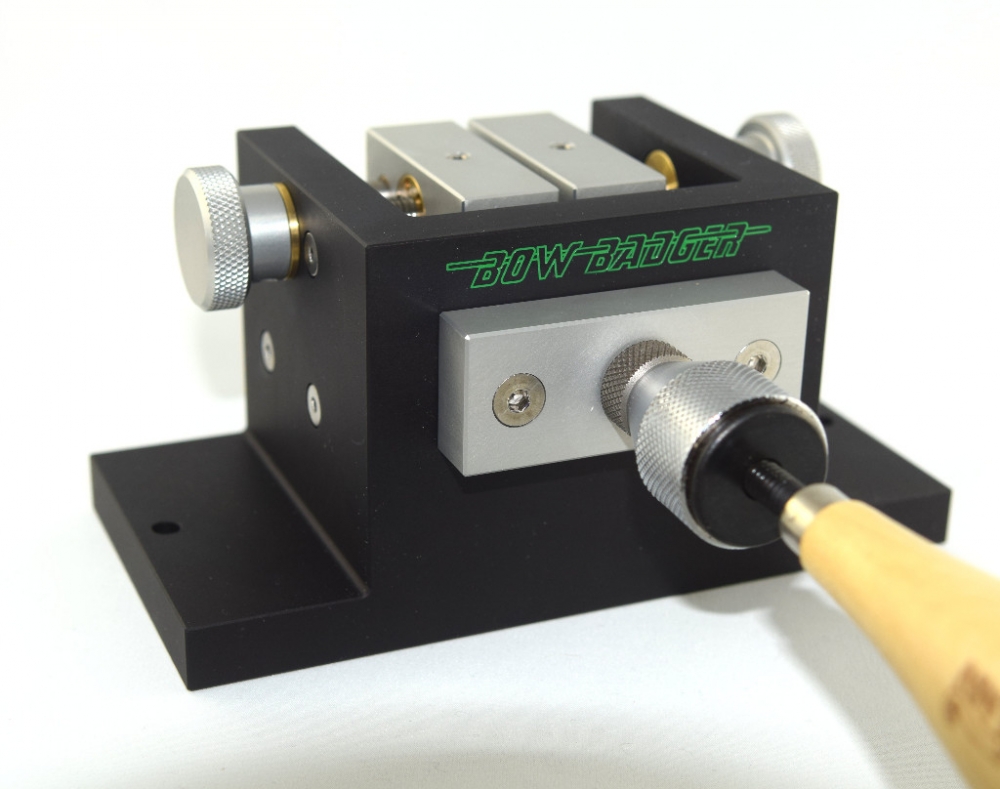

The Bow Badger is made in British Columbia, Canada using precision CNC fabricating technology. They accurately cut the multitude of parts from a variety of metals which include high-grade anodized aluminum, surgical steel rails, threaded vice rods and the brass bearings, oilite bronze sleeves that adjust in the unlikely event correction needs to be made. They are hand-assembled at the factory. This tool is designed to last indefinitely as long as care is taken in storage and cleanliness, Butt bushings have been completed in as little as 15 minutes of actual bench time once the unit is set up. The bow shaft is held securely on four sides and may not need additional reinforcement to prevent cracking.
Item Includes
Item Includes

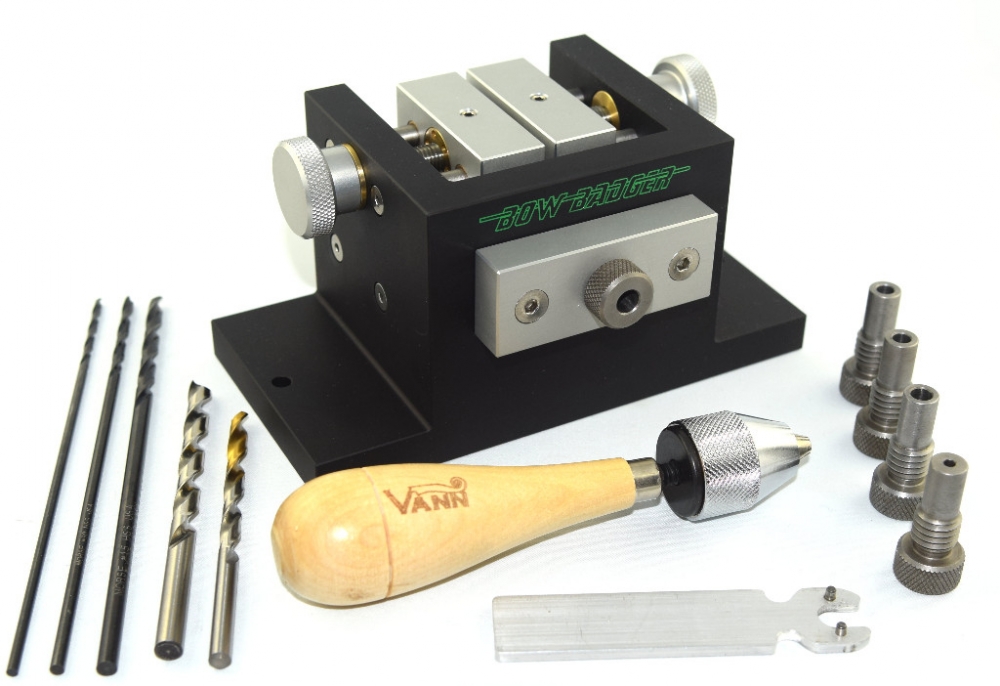

This unit ships with five drill guides, five drill bits, a bearing adjustment wrench, hand held drill chuck with handle, drill stops, Allen wrench.
Here are the fractional numbers for the drill bits.
Drills included with kit - All are readily available in the USA and most Euro countries. It is a USA measure and sold by the number size.
#7 = 13/128th inch
#15 = 1/8th inch
#30 = 23/128th inch
#38 = 25/128th inch
1/4 inch
